Driver Side Boomless End Mount Kit with Boominator 1400 Nozzles

The BOOMLESSBOOMINATOR1400 driver-side end-mount kit is designed for operators who need increased spray output and wider coverage along the left side of an existing spray boom. Mounted at the end of a 12' or 18' boom, this single-side boomless setup extends application reach into areas that standard boom sections cannot effectively cover.

Using Boominator 1400 nozzles, this kit delivers higher flow and broader spray distribution, making it well suited for ag spray applications that require efficient edge coverage such as fence lines. It is commonly installed on an atv sprayer, larger utv sprayer, or pull behind sprayer, providing a practical alternative to modifying or extending a full boom assembly.

Key Features

• Ideal for edge and perimeter spraying
• Long-lasting stainless steel nozzles

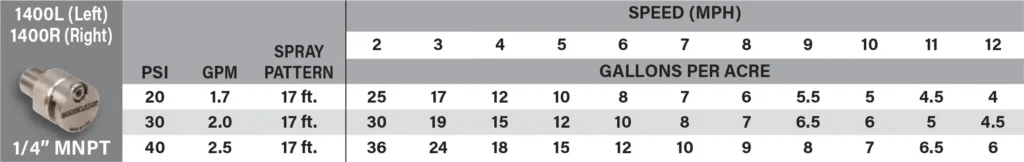

Technical Specifications

• Nozzle type: Boominator 1400
• Connection: ¼” MNPT
• Typical operating pressure: 20–40 PSI
• Approximate flow rate: 1.7–2.5 GPM
• Spray pattern: 17’
• Mounting location: End of boom, passenger side (right)
• Compatible boom widths: 12' and 18'

Request a quote from a dealer today.
