Passenger Side Boomless End Mount Kit with Boominator 1870 Nozzles

The BOOMLESSBOOMINATOR1870 passenger-side end-mount kit provides high-output boomless spraying from the right end of a 12' or 18' spray boom. This kit is designed for operators who need to treat wide boundary areas efficiently while maintaining compatibility with existing boom setups.

Using Boominator 1870 nozzles, this configuration supports high-volume ag spray applications and is well suited for larger pull behind sprayer, UTV sprayer, and 3 point sprayer systems. It allows operators to increase productivity along edges without expanding overall boom width.

Key Features

• Ideal for edge and perimeter spraying
• Long-lasting stainless steel nozzles

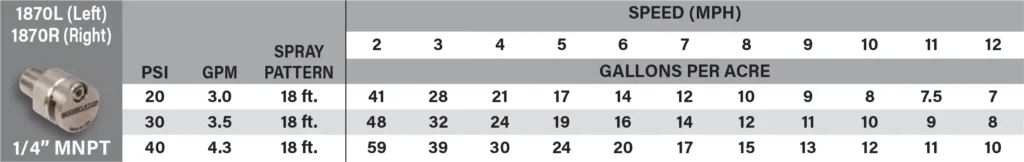

Technical Specifications

• Nozzle type: Boominator 1870
• Connection: ¼” MNPT
• Typical operating pressure: 20–40 PSI
• Approximate flow rate: 3.0–4.3 GPM
• Spray pattern: 18’
• Mounting location: End of boom, passenger side (right)
• Compatible boom widths: 12' and 18'

Request a quote from a dealer today to improve your spraying capabilities.
