Single Side Boomless End Mount with Hypro Blue Nozzles

The BOOMLESSHYPRO 20 Blue end-mount kit is designed for operators who want to extend spray coverage beyond the end of a traditional boom. This single-side boomless setup mounts directly to the end of a 12' or 18' boom, allowing liquid to be applied into areas that standard boom sections cannot reach.

Using a Hypro Blue (20) boomless nozzle, this kit provides mid-range output and balanced coverage for ag spray applications. It’s commonly added to an atv sprayer or pull behind sprayer where edge spraying, fence lines, or ditch coverage is required without modifying the entire boom system.

Key Features

• Boomless fan spray pattern
• Medium–coarse droplet size
• Pre-orifice technology
• Polyacetal or Stainless Steel material
• Ideal for edge and perimeter spraying

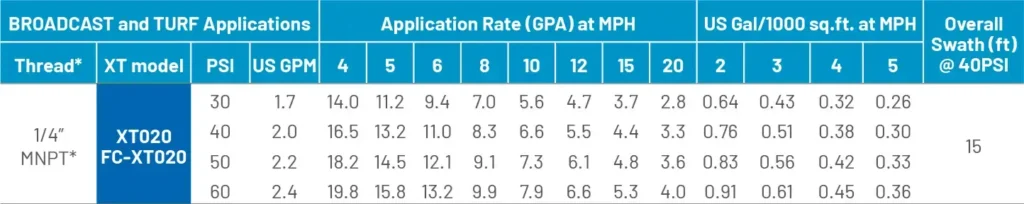

Technical Specifications

• Nozzle type: Hypro Blue (20)
• Connection: 1/4” MNPT
• Typical operating pressure: 30–60 PSI
• Approximate flow rate: 1.7–2.4 GPM
• Spray angle: 110°
• Mounting location: End of boom (single side)
• Compatible boom widths: 12' and 18'
