TRU-KLEEN

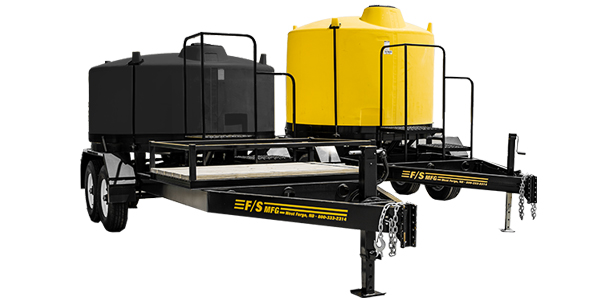

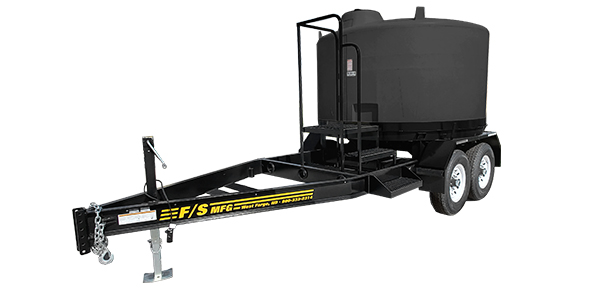

CONE BOTTOM TRAILERS
The Tru-Kleen™ Cone Bottom Trailers are at your service to load up your liquid fertilizer and take it to the field! With a Tru-Kleen™Cone Bottom Trailers you can stop wasting time making trips back to the farm for every fill.
Take advantage of all the benefits of a Tru-Kleen™ product! You can rest assured that you will harvest every last drop of product out of your tanks with the 10-degree cone bottom and a male threaded outlet.
- SPECIFICATIONS
- DOWNLOADS
- REQUEST INFORMATION

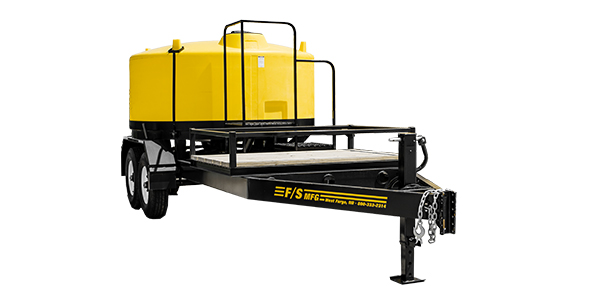

FSCADDY 1000
| SPECIFICATIONS | FSCADDY10-* | FSCADDY10D-* | ||
|---|---|---|---|---|
| *Specify Tank Color | (Y)=Yellow | (N)= Natural | ||||
| GWR (Gross Weight Rate) | 14,000 lbs | 14,000 lbs | ||
| Dry Trailer Weight | 2,260 lbs | 3,000 lbs | ||

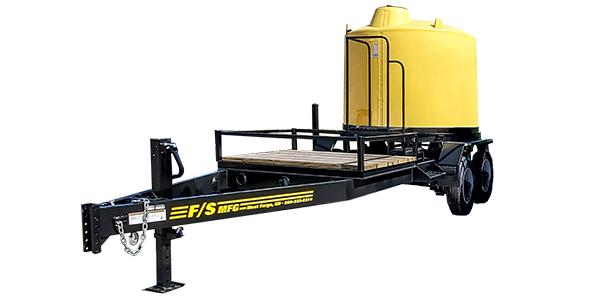

| Deck (W x L) | - | 68 1/2” x 50” with removable driver side bar | ||
| Height | 82" | 82" | ||
| Overall Width | 91” | 91” | ||
| Overall Length | 206” | 255” | ||
| Step | 3 step ladder with railing for easy access to tank lid | 3 step ladder with railing for easy access to tank lid | ||
| Tires | 235/80R16 10 ply high speed tires | 235/80R16 10 ply high speed tires | ||
| Axles | (2) 7,000 lb with greased bearing hubs | (2) 7,000 lb with greased bearing hubs | ||
| Jack | 8,000 lb side wind telescoping leg with 26" lift | 12,000 lb side wind telescoping leg with 26" lift | ||

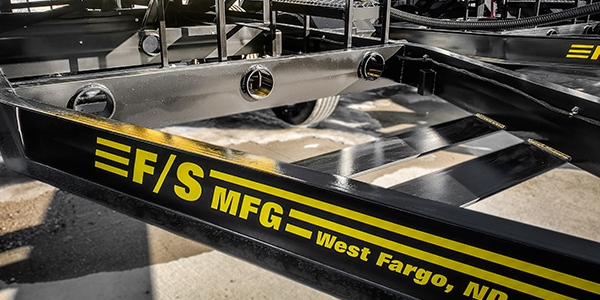

| Frame | 7" channel 9.8 lb/ft | 7" reinforced channel 9.8 lb/ft | ||
FSCADDY 1300
| SPECIFICATIONS | FSCADDY13-* | FSCADDY13D-* | ||
|---|---|---|---|---|
| *Specify Tank Color | (Y)=Yellow | (N)= Natural | ||||
| GWR (Gross Weight Rate) | 14,000 lbs | 16,000 lbs | ||
| Dry Trailer Weight | 2,260 lbs | 3,000 lbs | ||
| Deck (W x L) | - | 68 1/2” x 50” with removable driver side bar | ||
| Height | 96" | 96" | ||
| Overall Width | 91” | 91” | ||
| Overall Length | 206” | 255” | ||
| Step | 3 step ladder with railing for easy access to tank lid | 3 step ladder with railing for easy access to tank lid | ||
| Tires | 235/80R16 10 ply high speed tires | 235/85R16 14 ply high speed tires | ||
| Axles | (2) 7,000 lb with greased bearing hubs | (2) 8,000 lb with greased bearing hubs | ||
| Jack | 8,000 lb side wind telescoping leg with 26" lift | 12,000 lb side wind telescoping leg with 26" lift | ||
| Frame | 7" channel 9.8 lb/ft | 7" reinforced channel 9.8 lb/ft | ||

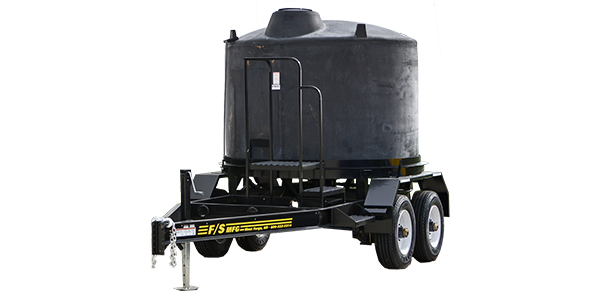

FSCADDY 1600
| SPECIFICATIONS | FSCADDY16-* | FSCADDY16D-* | ||
|---|---|---|---|---|
| *Specify Tank Color | (Y)=Yellow | (N)= Natural | ||||
| GWR (Gross Weight Rate) | 20,000 lbs | 20,000 lbs | ||
| Dry Trailer Weight | 2,260 lbs | 3,000 lbs | ||
| Deck (W x L) | - | 68 1/2” x 50” with removable driver side bar | ||
| Height | 112" | 112" | ||
| Overall Width | 95” | 95” | ||
| Overall Length | 206” | 255” | ||
| Step | 3 step ladder with railing for easy access to tank lid | 3 step ladder with railing for easy access to tank lid | ||
| Tires | 235/75R17.5 16 ply high speed tires | 235/75R17.5 16 ply high speed tires | ||
| Axles | (2) 10,000 lb with greased bearing hubs | (2) 10,000 lb with greased bearing hubs | ||
| Jack | 8,000 lb side wind telescoping leg with 26" lift | 12,000 lb side wind telescoping leg with 26" lift | ||
| Frame | 7" channel 9.8 lb/ft | 7" reinforced channel 9.8 lb/ft | ||

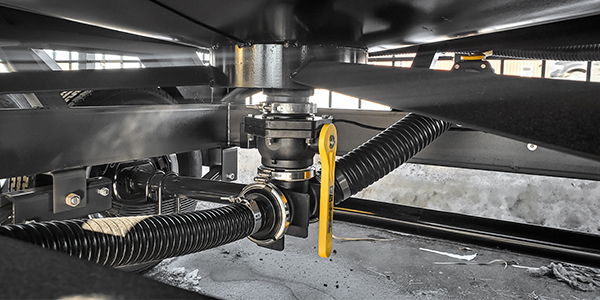

FSCADDY PLUMBING PACKAGES
| PART# | GAL. |
|---|---|
| FSCADDY-PK2 | 2" Plumbing Package |
| FSCADDY-PK3 | 3" Plumbing Package |
