SPRAY BOOMS

Home Portfolio Item BOOMS

OPTIONAL EQUIPMENT
SPRAY BOOMS

Adjustable boom height
Folding Booms with multiple Spray Coverage options
High Quality TeeJet Spray Nozzles with 20″ Spacing
Flexible hose for kink free folding
1/2″ Banjo Schedule 80 glass filled polypropylene Micro Shut-off Valves for Section Spray Control
Designed to meet the requirements of lawn and garden spraying.
Spring loaded breakaway resets your boom automatically & minimizes needless wear & tear
Flex Boom Options

View Catalog Page

TALK TO A PRO
FIND A DEALER

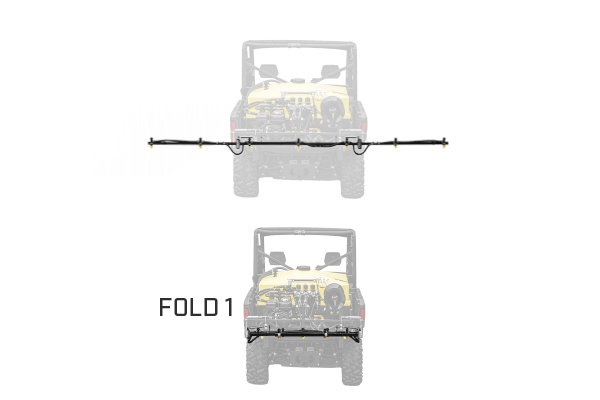

BOOM12-Web-1

BOOM12

12'

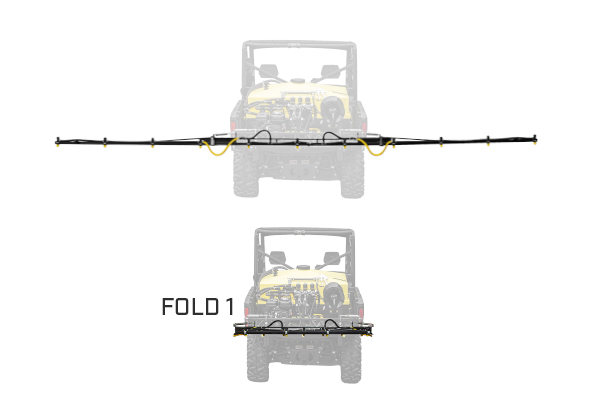

BOOM18-Web-1

BOOM18

18'

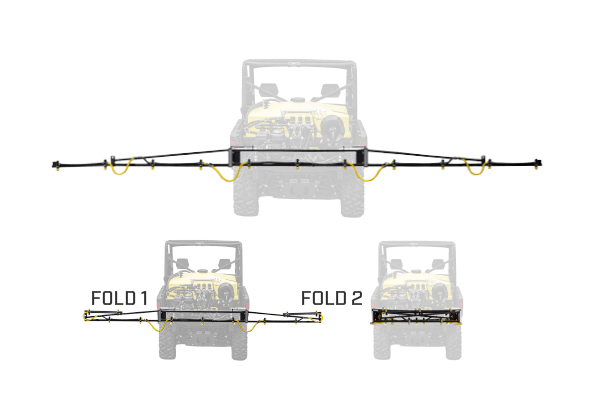

BOOM18FLEX-Web-1

BOOM18FLEX

18'

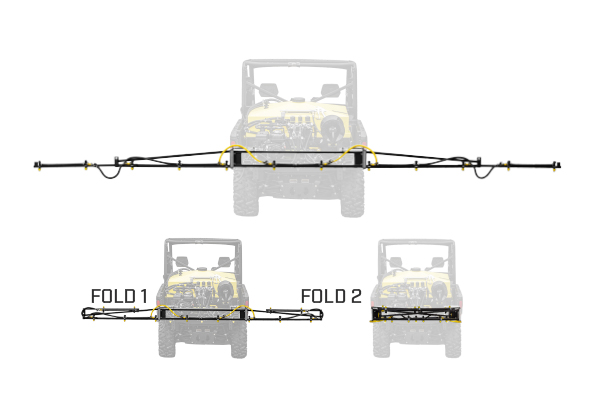

BOOM20FLEX-Web-1

BOOM20FLEX

20'

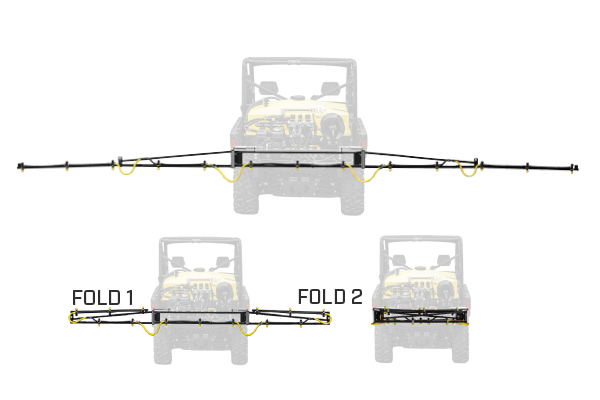

BOOM22FLEX-Web-1

BOOM22FLEX

22'

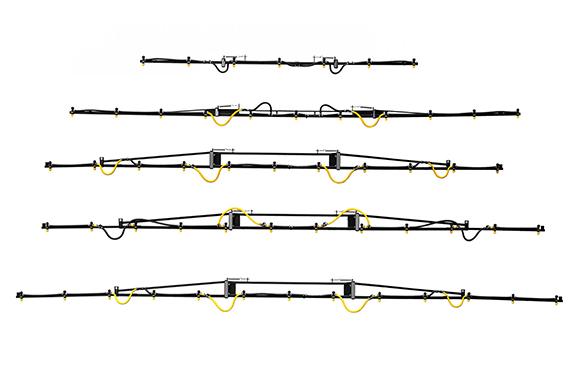

All-Sprayers

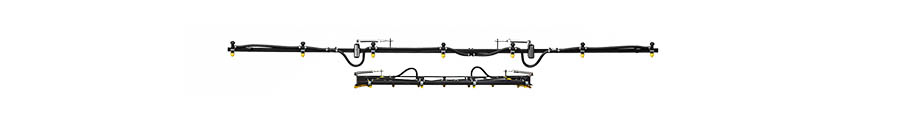

BOOM12

SPECIFICATIONS	UNFOLDED	FOLD 1
PHYSICAL WIDTH	10'4"	4'9"
SPRAY COVERAGE	11'8"	5'
TOTAL NOZZLES	7		#colspan#
NOZZLE SPACING	20"		#colspan#

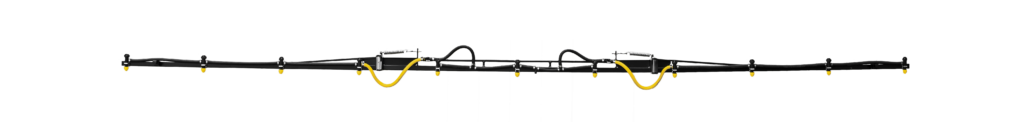

BOOM18

[

SPECIFICATIONS	UNFOLDED	FOLD 1
NOZZLE SPACING	20"		#colspan#
TOTAL NOZZLES	11		#colspan#
SPRAY COVERAGE	18'4"	5'
PHYSICAL WIDTH	17'3"	6'

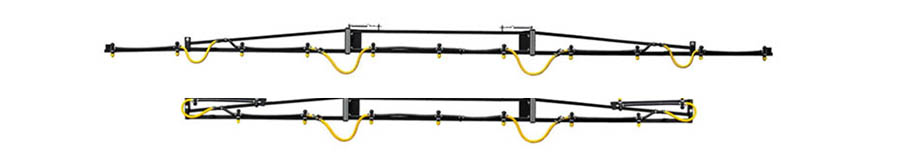

BOOM18FLEX

SPECIFICATIONS	UNFOLDED	FOLD 1	FOLD 2
NOZZLE SPACING	20"			#colspan#	#colspan#
TOTAL NOZZLES	11			#colspan#	#colspan#
SPRAY COVERAGE	18'4"	11'8"	5'
PHYSICAL WIDTH	17'3"	13'	4'9"

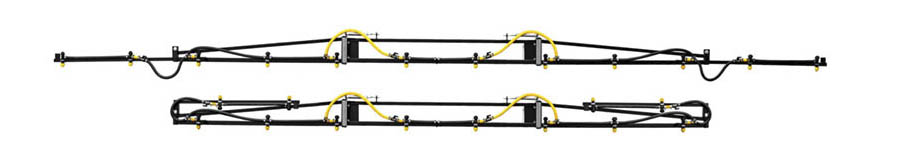

BOOM20FLEX

SPECIFICATIONS	UNFOLDED	FOLD 1	FOLD 2
NOZZLE SPACING	20"			#colspan#	#colspan#
TOTAL NOZZLES	12			#colspan#	#colspan#
SPRAY COVERAGE	20'	13'4"	3'4"
PHYSICAL WIDTH	18'11"	13'	4'9"

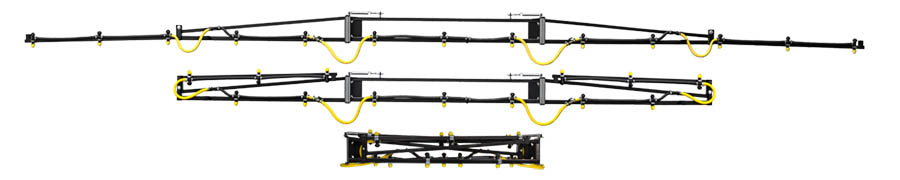

BOOM22FLEX

SPECIFICATIONS	UNFOLDED	FOLD 1	FOLD 2
NOZZLE SPACING	20"			#colspan#	#colspan#
TOTAL NOZZLES	13			#colspan#	#colspan#
SPRAY COVERAGE	21'8"	11'8"	5'
PHYSICAL WIDTH	20'7"	13'	4'9"

Boom Specifications
